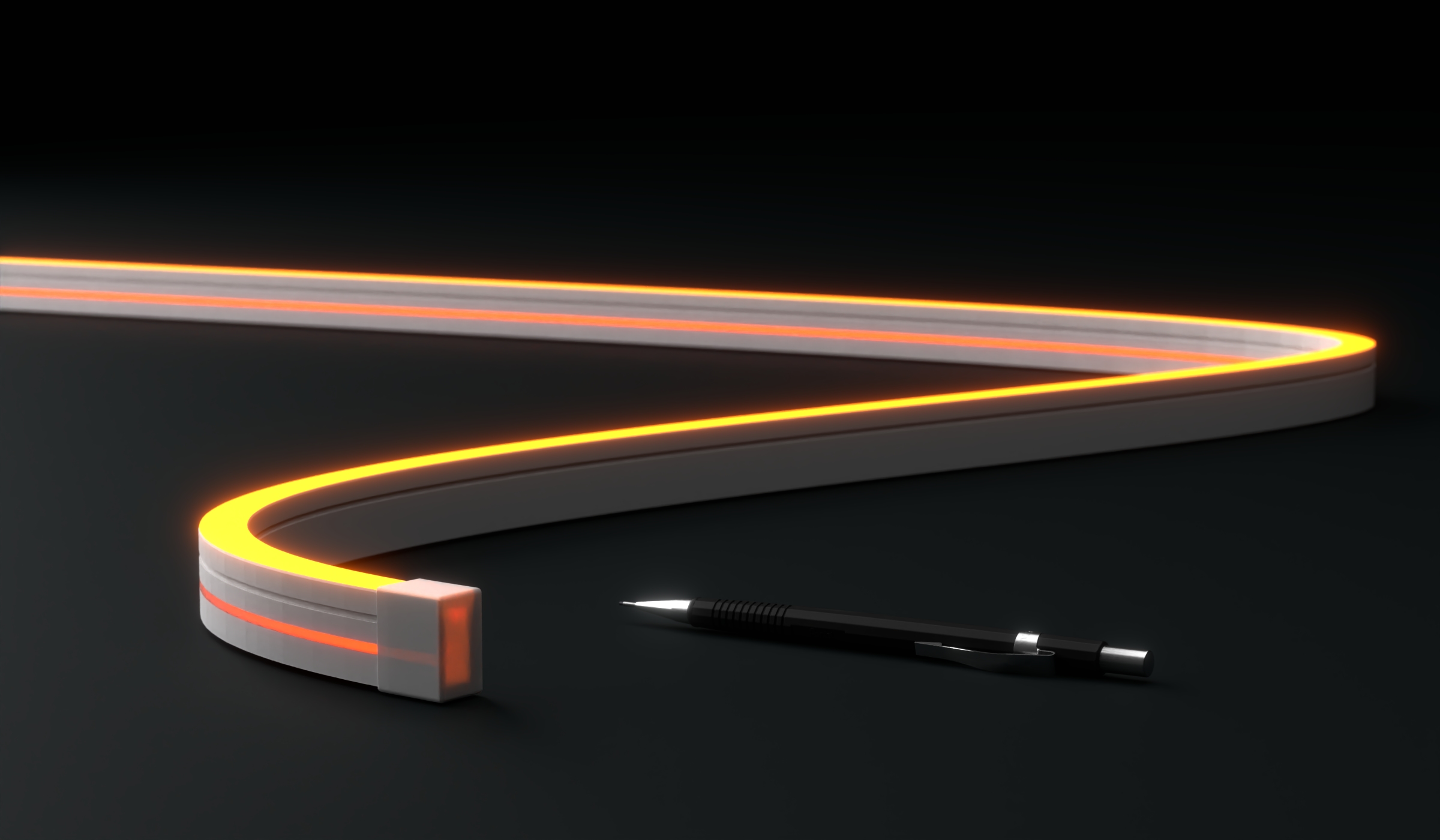

Side bend neon flex is a flexible, energy-efficient LED lighting solution designed to mimic traditional neon while offering greater versatility. It can bend horizontally on a flat plane, making it ideal for intricate designs with tight curves. Made from durable silicone, it offers seamless, uniform illumination without visible diode spots, and comes in a variety of colour options like Fixed Colour White, Colour Tuneable White, RGB and RGBW. Its energy efficiency and durability make it a cost-effective, eco-friendly choice for both decorative and architectural lighting applications.
| Product Range | Neon Flex |
| LED Strip Type | Fixed Colour White |
| LED Pitch | 8.33 mm |
| LED’s per metre | 120 |
| LED Cut Point | 50 mm |
| Dimensions | 102 mm x 20 mm x 20 m (Reel length) |
| Colour Temperature | 2200 K |
| Lifetime | up to 35000 hours |
| Mounting Method | See product accessories |
| Voltage | 24 V |
| Power Consumption | 15 W |
| Lumen Output | 345 lm |
| Lumen Efficiency | 23 lm / W |
| Maximum Continous Run (Powered from one end) | 5 m |
| IP Rating | IP 65 (IP 67 available) |
| CRI (Ra) | 90+ |
| Colour Binning Step | 3 SCDM (2 SCDM available) |
| Operating Temperature | -20°C ~ +50°C |
